Barreto E30SGB Stump Grinder, Briggs Vanguard 31HP

31 HP V-Twin Track Stump Grinder

Built for demanding stump removal applications, this tracked stump grinder combines powerful cutting performance, stable track-driven mobility, and precise hydraulic control. Its center-mounted cutter wheel provides a wide 134° head swing, while the track system delivers stability and impact absorption across challenging terrain.

Easy Operator Controls

Simple controls provide convenient operation of both the track drive and cutter wheel, allowing the operator to maneuver the machine and control the grinding head efficiently.

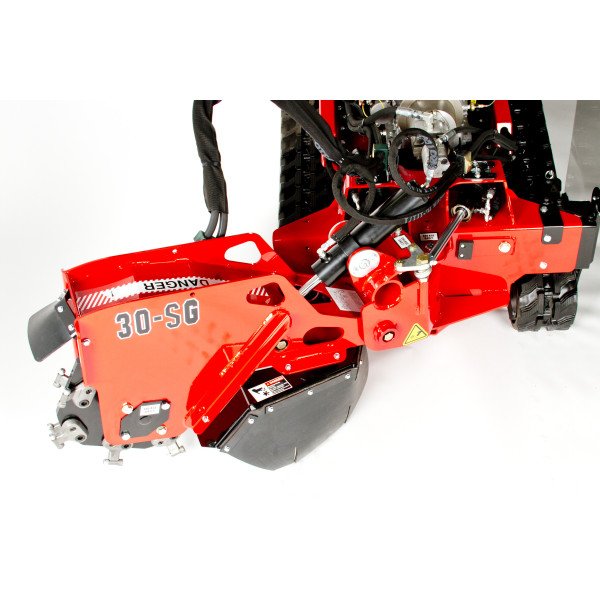

Powerful Hydraulic Cutter System

The center-mounted cutter wheel is hydraulically driven and provides a 134° head swing with a 99.7-inch arc. The engine is coupled to two gear pumps: a larger pump supplies power to the cutter wheel, while a smaller pump operates the tilt and swing functions.

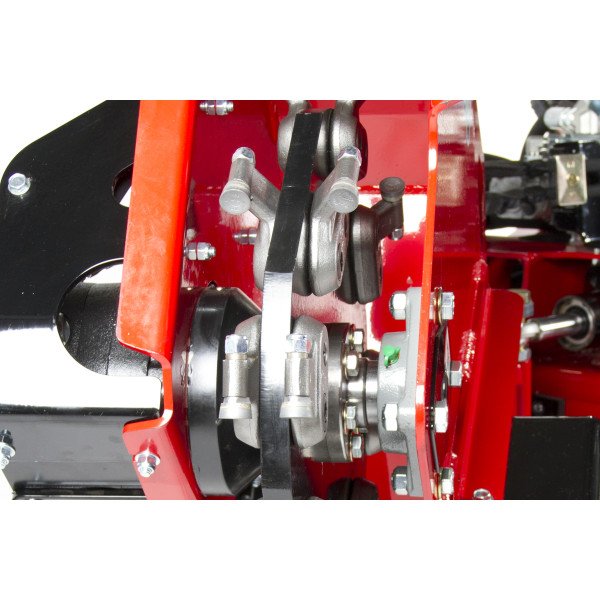

High-Performance Cutting System

• Cutting Wheel: 19.2-inch diameter to tooth
• Cutting Teeth: 16 Green Teeth, 0.750-inch thick
• Maximum Cutting Depth: 12 inches
• Maximum Cutting Height: 32 inches
• Head Swing: 134°
• Swing Arc: 99.7 inches

Stable Track System

The time-tested track design is built to absorb impacts while providing a stable platform during operation. With 180 mm (7.1-inch) wide tracks and 472 square inches of total ground contact, the machine provides a substantial footprint for controlled stump grinding.

Each track drive is equipped with counterbalance valves designed to prevent the track motors from slipping, helping maintain controlled movement during operation.

Powerful Briggs & Stratton Engine

The available engine configuration features a Briggs & Stratton Vanguard 31 HP V-Twin, providing the power required to operate the hydraulic cutting and track systems for demanding stump removal work.

Dimensions & Specifications

• Engine: Briggs & Stratton Vanguard 31 HP V-Twin
• Weight: 1,700 lbs
• Height: 49.5 inches
• Length, Head to Side: 79 inches
• Length, Head Straight: 98 inches
• Width: 35.5 inches
• Cutting Wheel Diameter to Tooth: 19.2 inches
• Cutting Teeth: 16 Green Teeth, 0.750-inch thick
• Cutting Depth: 12 inches
• Cutting Height: 32 inches
• Head Swing: 134°
• Head Swing Arc: 99.7 inches
• Track Width: 180 mm (7.1 inches)
• Total Ground Contact: 472 sq. in.

Built for Demanding Stump Removal

With its 31 HP V-Twin engine, hydraulic cutter wheel, 16 cutting teeth, 12-inch cutting depth, 134° head swing, and heavy-duty track system, this stump grinder is designed to deliver controlled and efficient performance for professional stump removal applications.
