9′ Tractor Backhoe Attachment with Mechanical Thumb, 15″ Bucket, ISO/SAE Switchable Controls, Self-Contained Hydraulic System, 3 Point Hitch Cat.1 & 2, 25-100 HP, BH860M

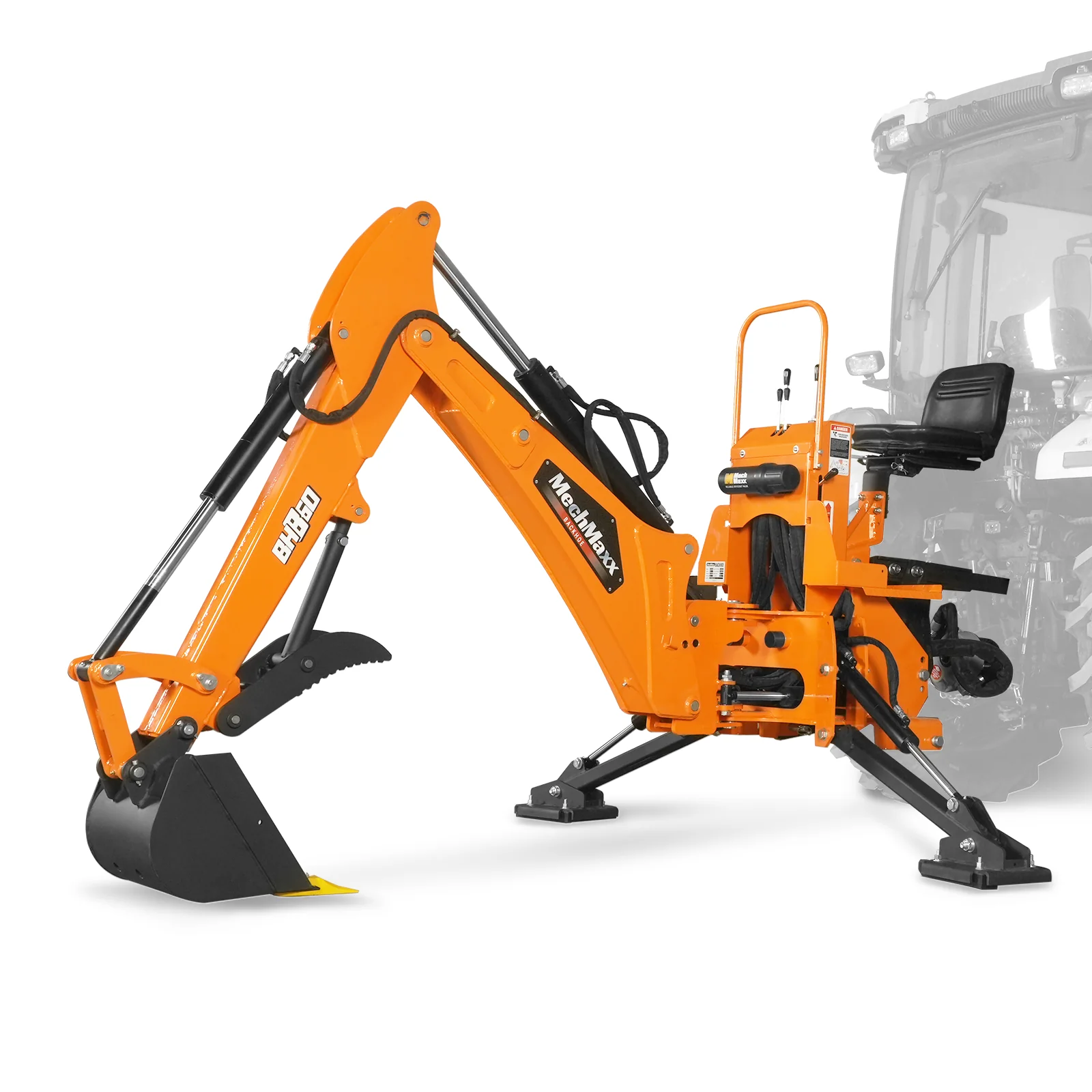

MechMaxx BH860M 9′ Tractor Backhoe Attachment

The MechMaxx BH860M Backhoe is a reliable solution for a wide range of digging and excavation tasks. Designed for tractors equipped with Category I or Category II 3-point hitches, the BH860M requires a minimum of 25 PTO horsepower and a tractor weight of at least 3,200 lbs. It is well suited for farm and property maintenance, construction, road work, and general excavation.

Versatile Excavation Applications

The BH860M is designed to handle a variety of demanding digging tasks, including:

• Ditching on farms and grazing lands
• Digging pools
• Cleaning waterways
• General excavation and construction work
• Road-building and maintenance projects

9-Foot Digging Depth

With a maximum digging depth of 9 feet, the BH860M provides substantial reach for trenching and excavation projects. The 180° boom swing and 180° bucket rotation provide a wide working range, allowing operators to efficiently position the bucket and complete excavation tasks.

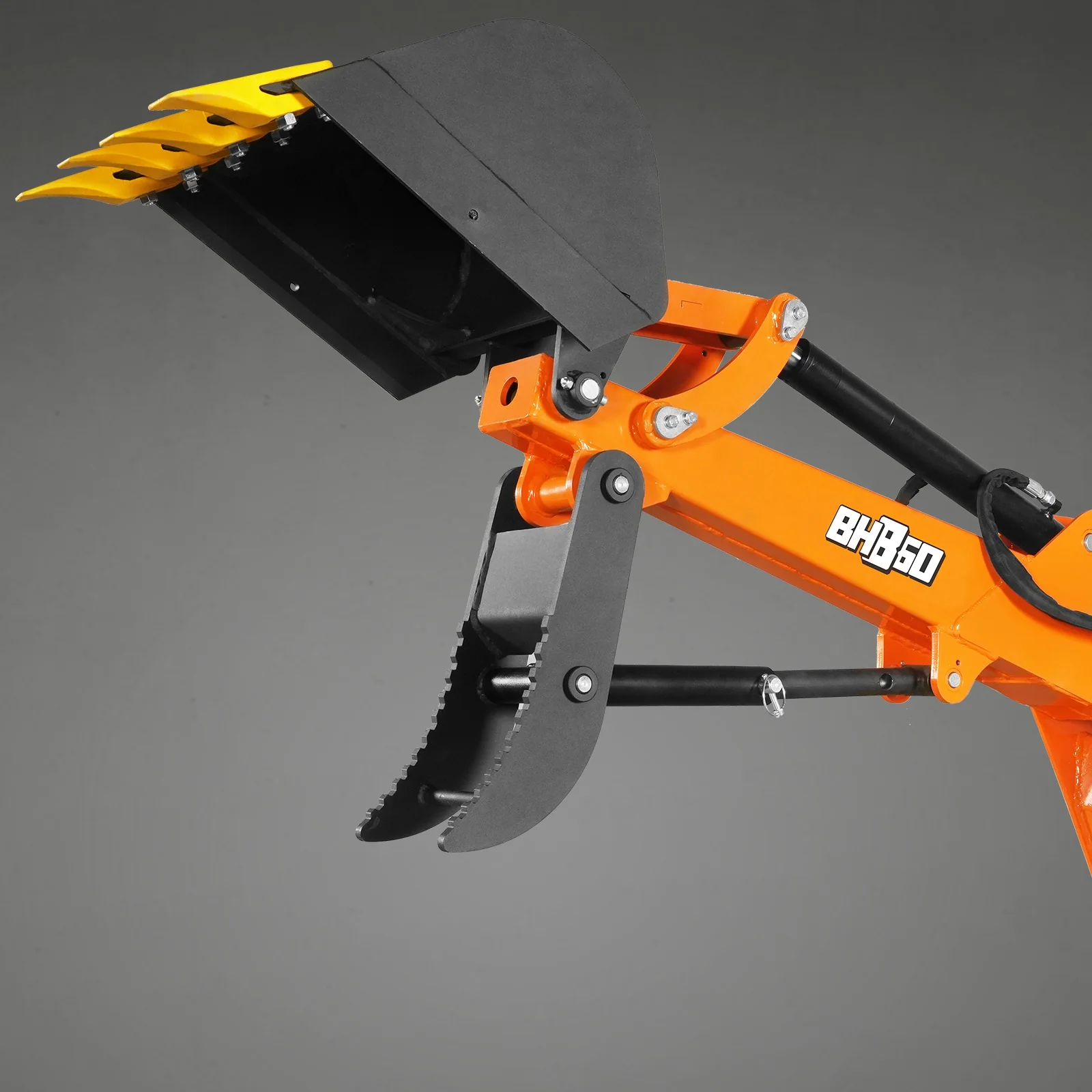

Mechanical Thumb & 15-Inch Bucket

The BH860M comes equipped with a 15-inch digging bucket and a mechanical thumb. The thumb provides additional control when handling rocks, logs, branches, and other materials. Additional bucket sizes and attachments are also available for different applications.

Hydraulic Stabilizer Legs

Two hydraulic stabilizer legs provide additional stability during operation. Each leg features replaceable rubber pads designed to help prevent tipping while reducing potential damage to supporting surfaces.

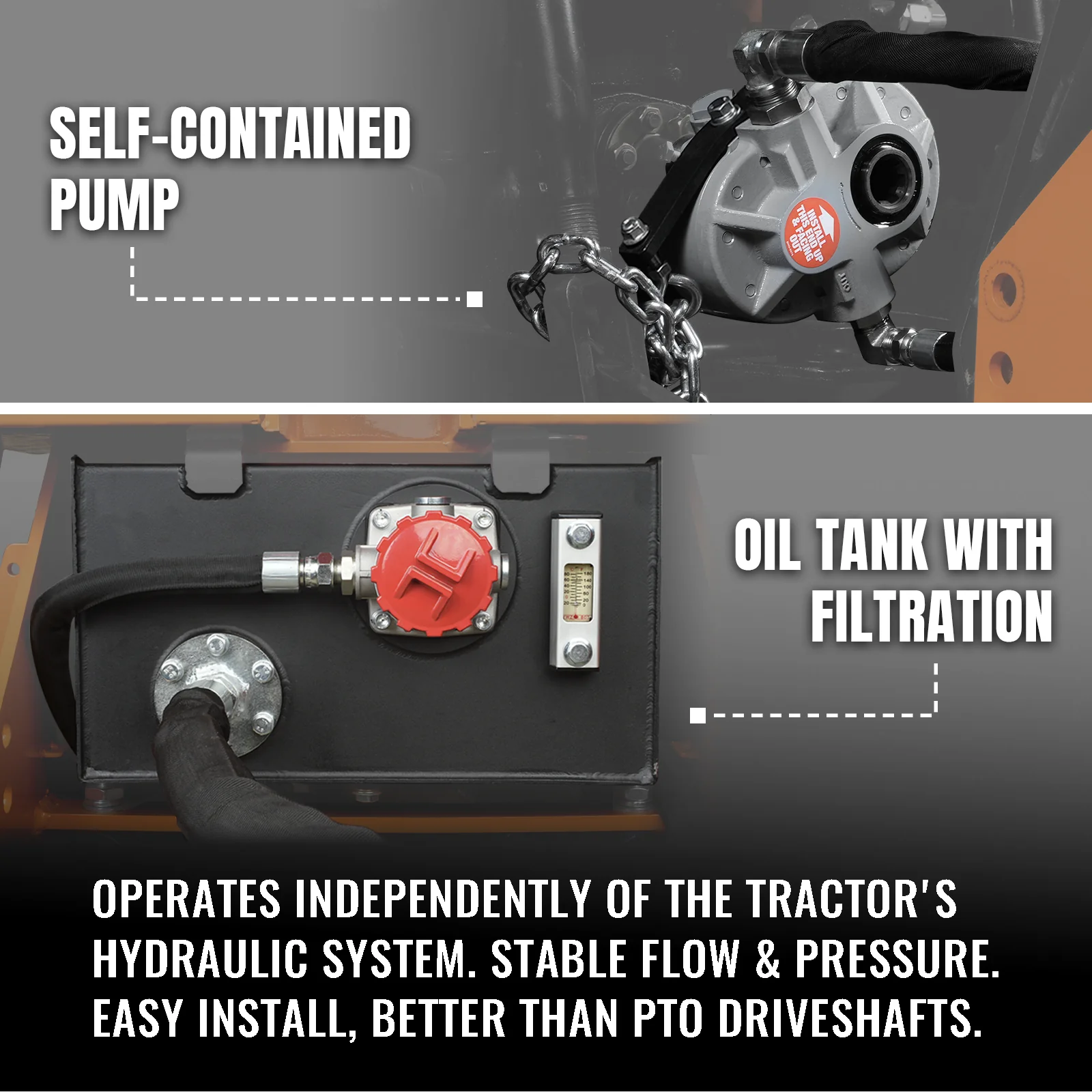

Self-Contained Hydraulic System

The BH860M features a self-contained gear pump and hydraulic oil tank, providing an integrated hydraulic system for reliable operation. This design allows for quick installation while delivering consistent hydraulic performance.

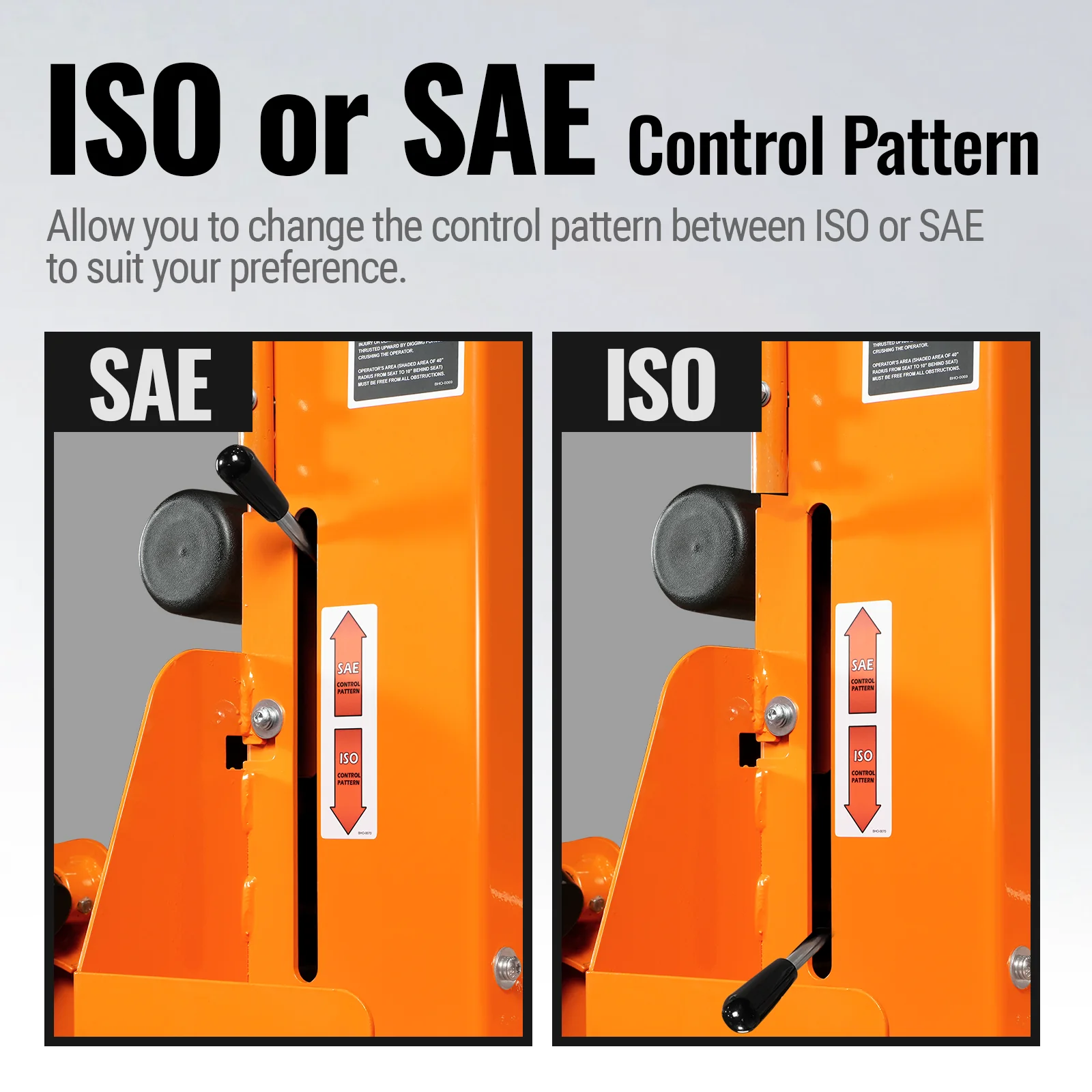

ISO/SAE Switchable Controls

The control system allows operators to switch between ISO and SAE control patterns. This flexibility makes it possible to select the control configuration that best matches the operator’s preference and experience.

Key Specifications

• Model: BH860M
• Maximum digging depth: 9 feet
• Minimum tractor PTO power: 25 HP
• Minimum tractor weight: 3,200 lbs
• Hitch compatibility: Category I & Category II 3-point hitch
• Boom swing: 180°
• Bucket rotation: 180°
• Included bucket: 15-inch
• Thumb: Mechanical
• Stabilizers: Two hydraulic legs with replaceable rubber pads
• Hydraulic system: Self-contained gear pump and hydraulic oil tank
• Control pattern: ISO/SAE switchable

The MechMaxx BH860M combines a 9-foot digging depth, 180° working range, mechanical thumb, hydraulic stabilizers, and a self-contained hydraulic system to provide a capable and versatile backhoe attachment for tractors used in farming, construction, landscaping, waterway maintenance, and road work.
